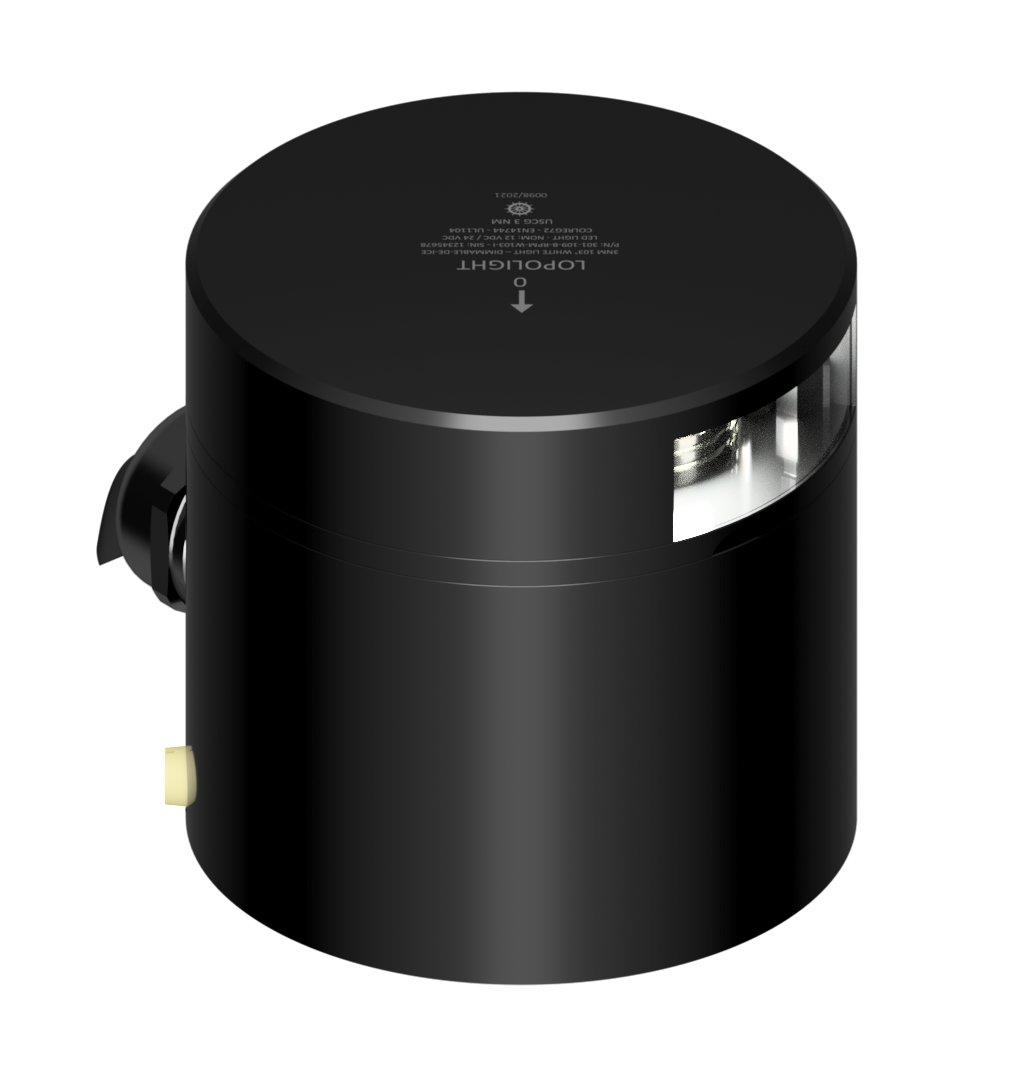

3nm 103° White, hor mnt, dimm Ice-Class, Black
P/N: 301-109-B-RPM-W103-I
3nm 103° White, hor mnt, dimm Ice-Class, Black
POSITION 7 - BB 103° Dimmable / monitored / controllable 2-lead connection for power and control mounted on aluminium base 2CS......
Number
301-109-B-RPM-W103-I
Dimensions metric
Ø92,5mm x 74,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 2.9"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438022898
IP rating
IP68
Power draw (W)
2,2
UPC Code
879343023027
Connection
Plug connector
Current consumption (mA @ 12VDC)
130
Special Attributes
Dimmable (NAVY/SAR only)
Current consumption (mA @ 24VDC)
70
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
