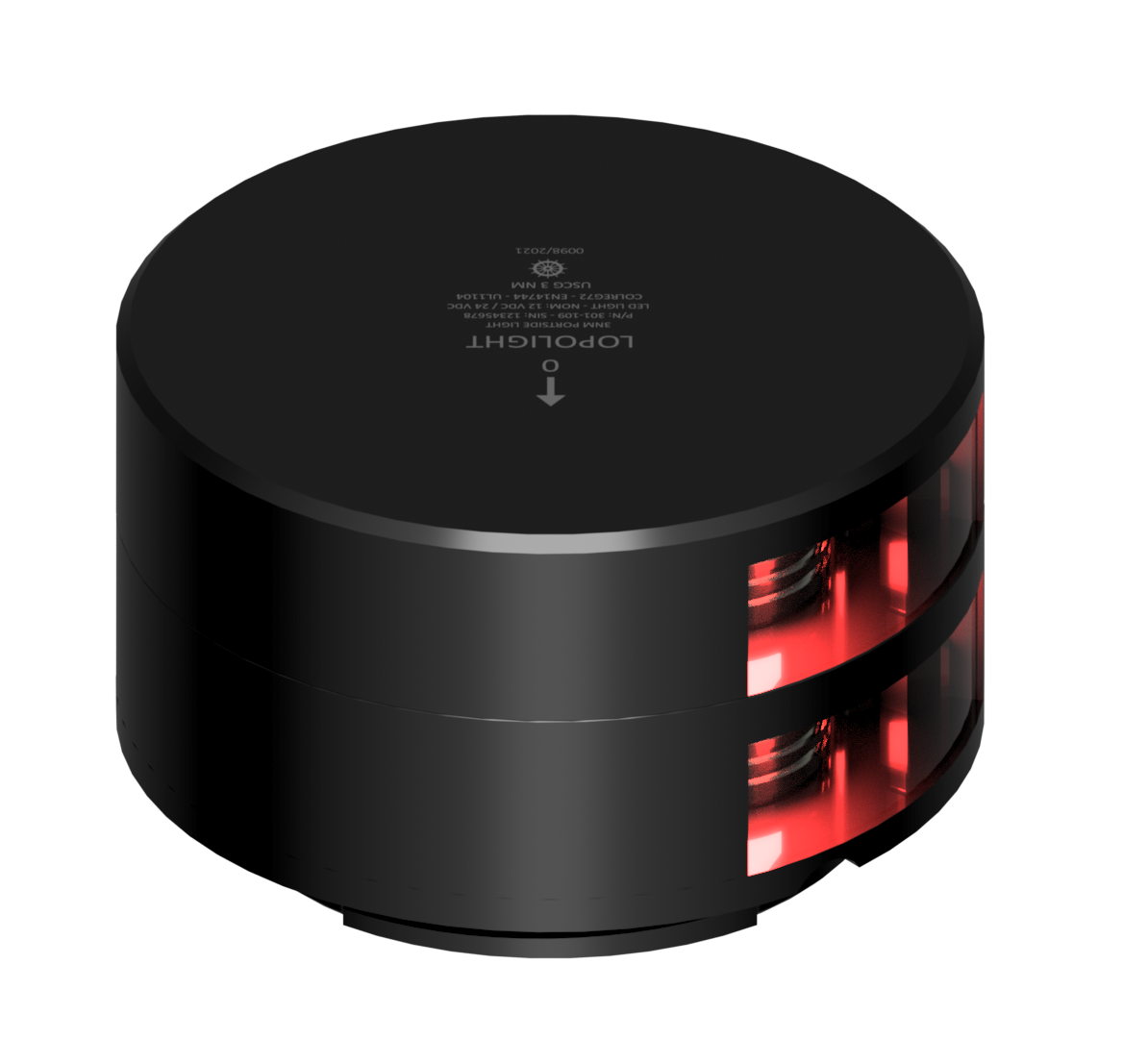

3nm 112,5° Red, dbl, hor, black, ice - LIGHT ONLY
P/N: 301-109ST-RPM-I-L4L
3nm Port, dbl, hor, black, ice - LIGHT ONLY
Dimmable / Monitored / controllable 3-lead connection for power and control Ice-class heaters built-in 24VDC FOR SPARE PARTS / LIGHTS 4 LIFE
Number
301-109ST-RPM-I-L4L
Dimensions metric
Ø92,5mm x 96,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 3.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438041752
IP rating
IP68
Power draw (W)
2,2
UPC Code
879343041885
Connection
Plug connector
Current consumption (mA @ 12VDC)
153
Current consumption (mA @ 24VDC)
92
Weight (Kg)
1.63 Kg
Weight (Oz)
57.49 Oz
