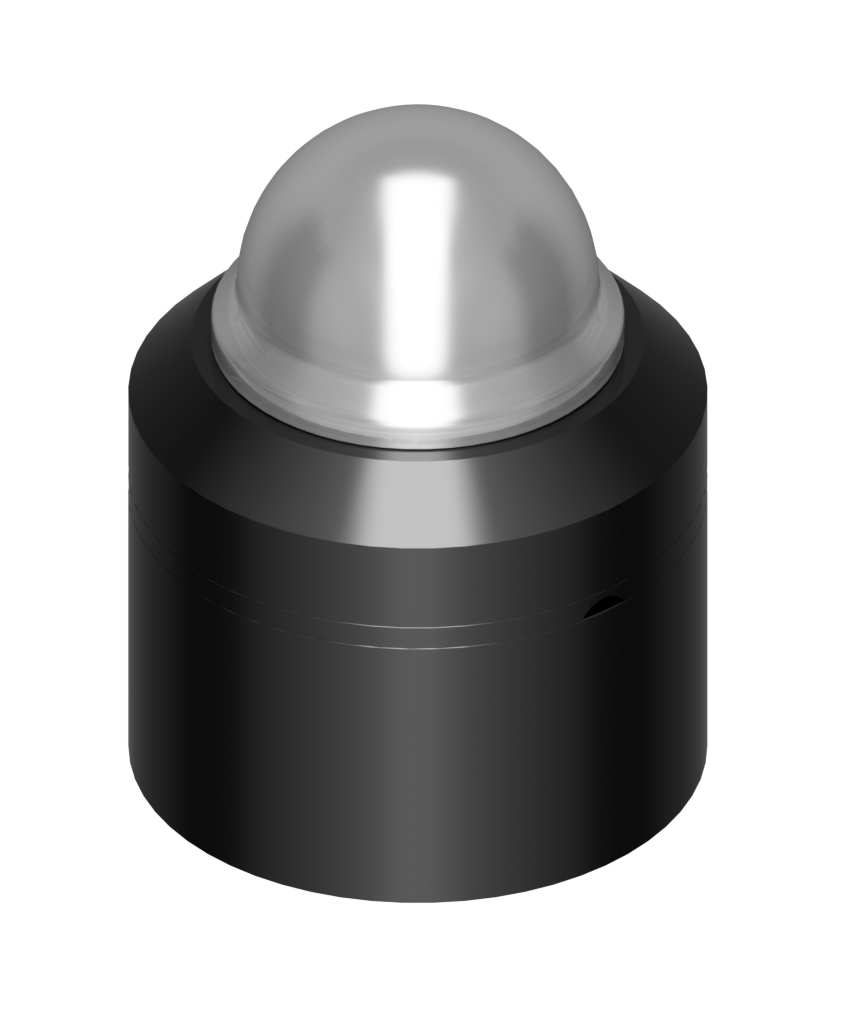

3nm Hemispherical/Strobe - Infra red (IR)
P/N: 301-411S-B-IR
3nm Hemispherical strobe - Infra red (IR)
Strobe frequency: 2Hz IR wavelength: 940nm Operating Voltage: 10-32VDC Housing is black anodized Light is mounted on POM base PE base base plate for easy installation Cable gland for 4-13mm cable Ø
Number
301-411S-B-IR
Dimensions metric
Ø92,5mm x 145,5mm
Certification
Tested to IEC 60945
Dimensions imperial
Ø3,6" x 5,7"
Approved to
IEC 60945
Included In Package
1 Navigation light,Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438041042
IP rating
IP68
Power draw (W)
2,7
UPC Code
879343041175
Connection
Plug connector
Current consumption (mA @ 12VDC)
153
Current consumption (mA @ 24VDC)
95
Weight (Kg)
0.95 Kg
Weight (Oz)
33.51 Oz
