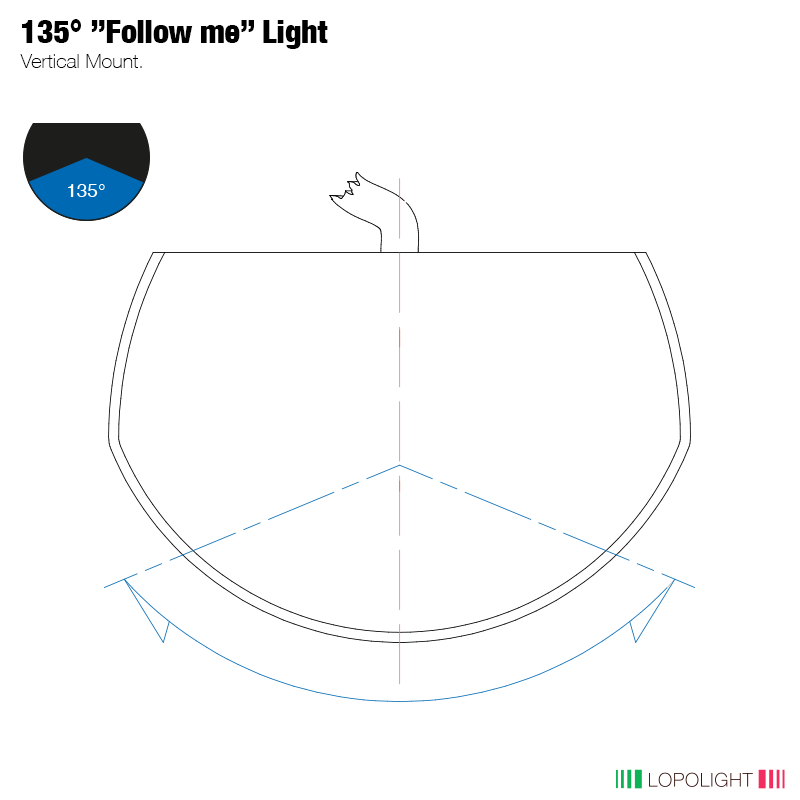

135° IR follow-me stern, dimm, vert mnt silver
P/N: 301-006-IR-FM-RPM
This LED Navigation light comes in black and silver, with the best technology available and impressive robustness. It is easy to install. Below is a list of more great features. For more detailed information, please download technical files.
IR wavelength: 940nm
Number
301-006-IR-FM-RPM
Light Color
IR
Dimensions metric
86,2 x 28 x 57,75
Certification
This Signal Light is designed, tested and manufactured to comply to IEC 60945
Intensity
>5.4cd
Dimensions imperial
3.3" x 1.1" x 2.27"
Approved to
IEC 60945
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438014824
IP rating
IP68
Power draw (W)
1,3
UPC Code
879343014827
Connection
2.5m cable
Current consumption (mA @ 12VDC)
110
Special Attributes
Dimmable (NAVY/SAR only)
Stock status
Custom build
Lead time
4-6 weeks
Current consumption (mA @ 24VDC)
50
Vessel size
Under 12M,12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.43 Kg
Weight (Oz)
15.17 Oz
