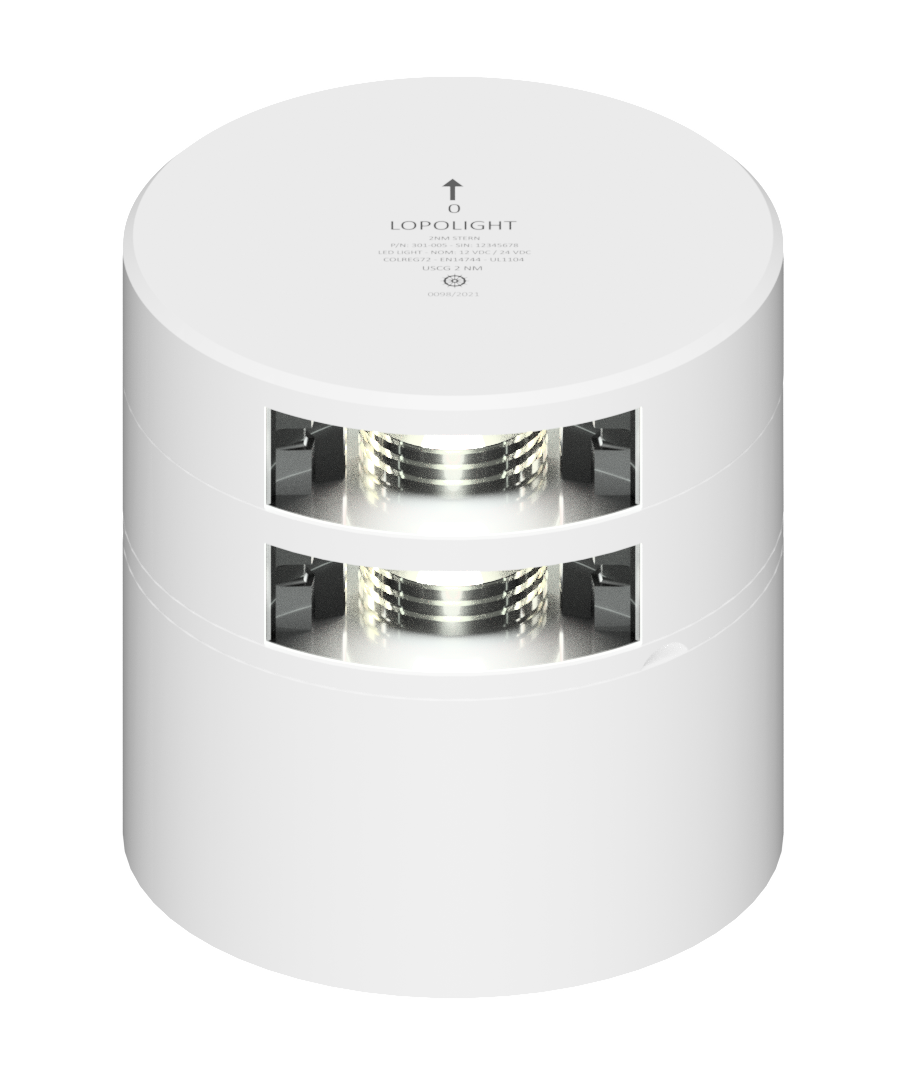

2nm 135° White, Stern, Dbl, white coated
P/N: 301-005ST-WH
2nm Stern, Double, white ceramic coated
White ceramic finish Aluminium mount base, white Cable down only Included standard: Black PE baseplate Option: white ceramic coated baseplate
Number
301-005ST-WH
Light Color
White
Dimensions metric
Ø92,5mm x 96,5mm
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>5.4cd
Dimensions imperial
Ø3.6" x 3.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438039308
IP rating
IP68
Power draw (W)
2
UPC Code
879343039431
Connection
Plug connector
Current consumption (mA @ 12VDC)
110
Current consumption (mA @ 24VDC)
50
Vessel size
12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.04 Kg
Weight (Oz)
36.68 Oz
