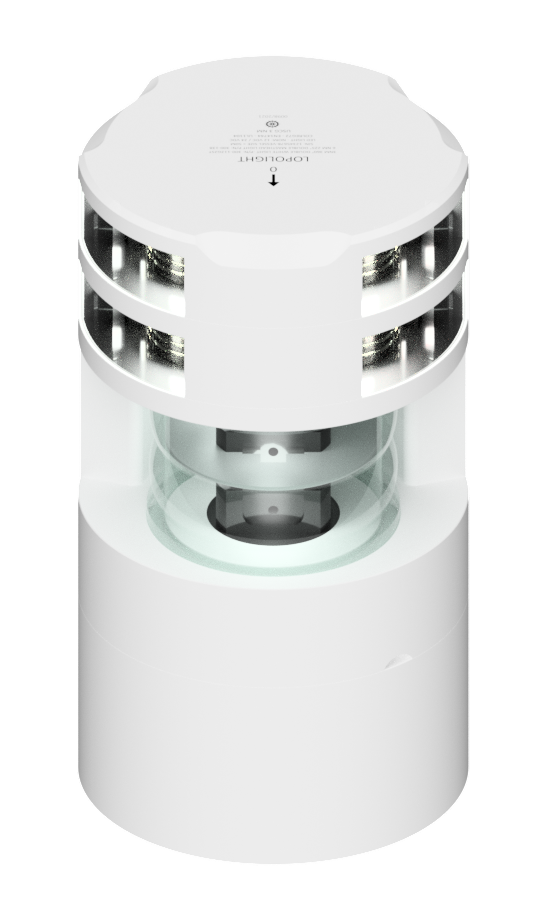

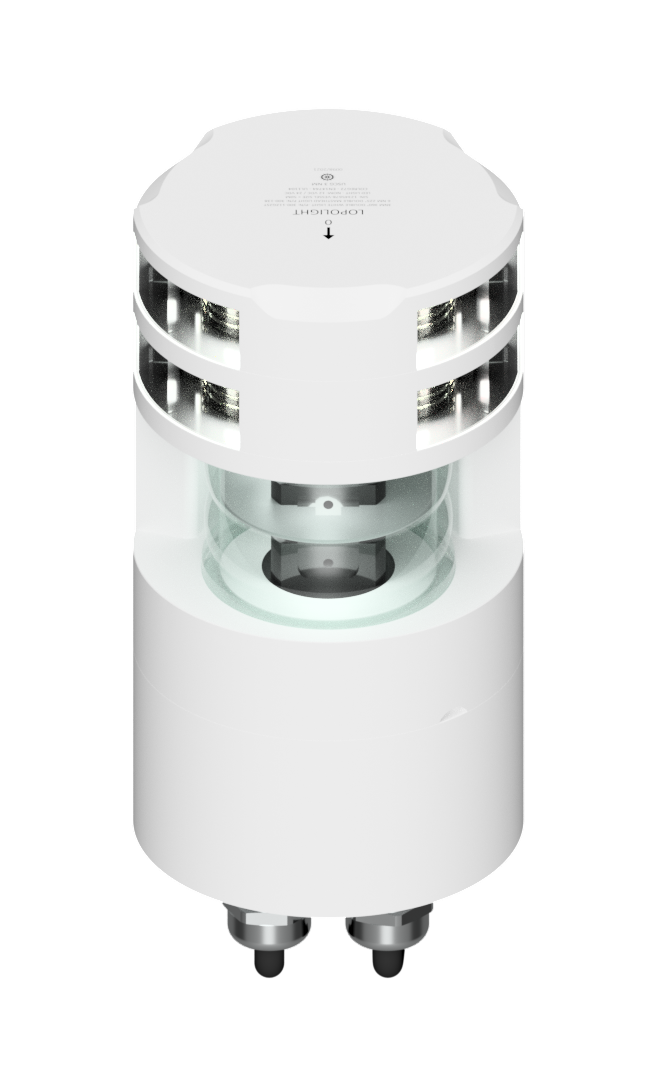

6nm 225° White, dbl masthead+3nm 360° White, dbl
P/N: 300-138+112ST-WH
6nm double masthead w/ 3nm double anchor, white
Number
300-138+112ST-WH
Light Color
White
Dimensions metric
Ø92,5mm x 169mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>94cd
Dimensions imperial
Ø3.6" x 6.6"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
White coated aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438041448
Power draw (W)
7
UPC Code
879343041571
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
350
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
