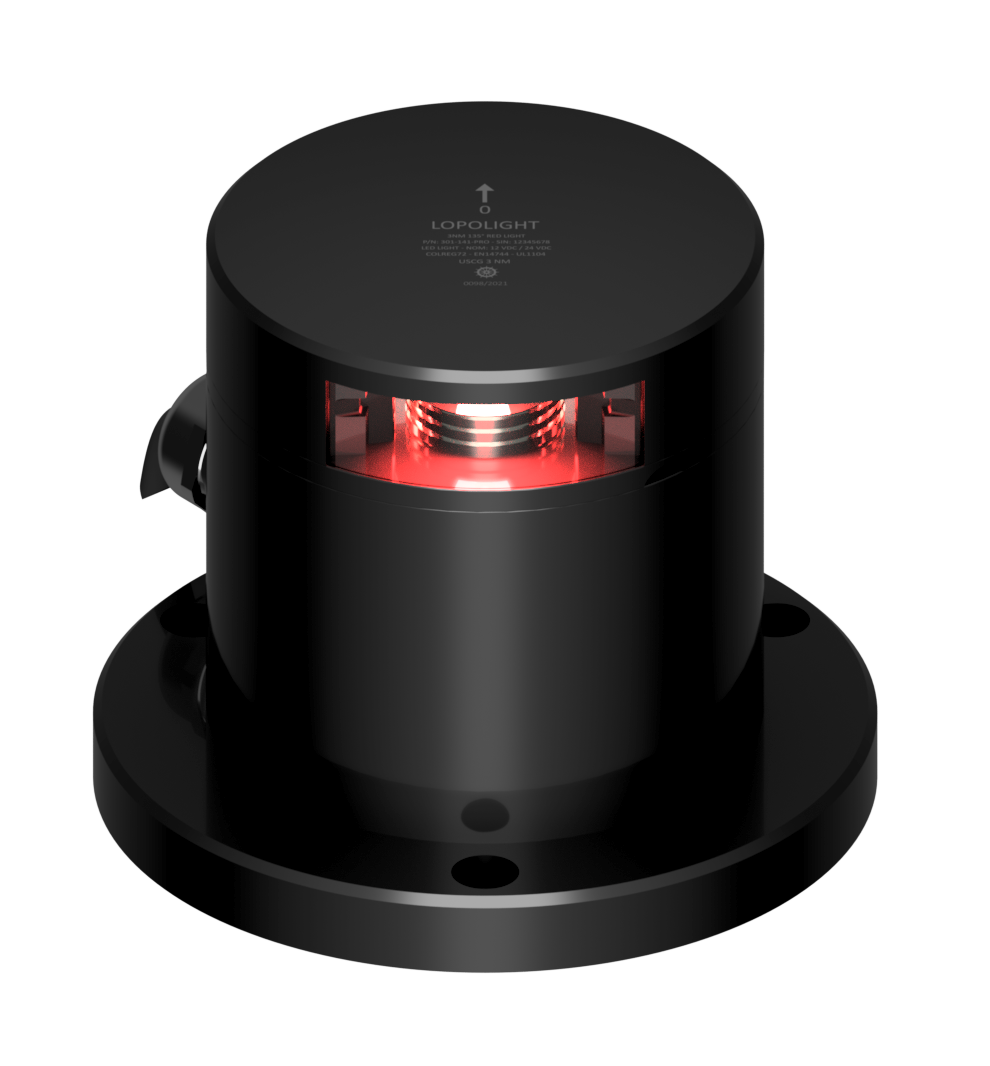

3nm 135° Red Suez stop, Ice-class, black anodized
P/N: 301-141-PRO-I
3nm 135° Red stop light, Ice-class, black anodized
Built in De-icing function Horizontally mounted on 400-037 POM base (IP68) Cable direction side incl. HDPE base plate & glands
Number
301-141-PRO-I
Light Color
Red
Dimensions metric
Ø92,5mm x 103,5mm
Certification
Tested to IEC 60945
Intensity
>15cd
Dimensions imperial
Ø3.6" x 4"
Approved to
IEC 60945
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438042247
IP rating
IP68
Power draw (W)
2,5
UPC Code
879343042370
Connection
Plug connector
Current consumption (mA @ 12VDC)
250
Special Attributes
Ice-class Defroster included
Stock status
Made to order
Current consumption (mA @ 24VDC)
80
Vessel size
Over 50M
Min. feed wire gauge
1.5mm2 AWG18
Weight (Kg)
1.12 Kg
Weight (Oz)
39.50 Oz
