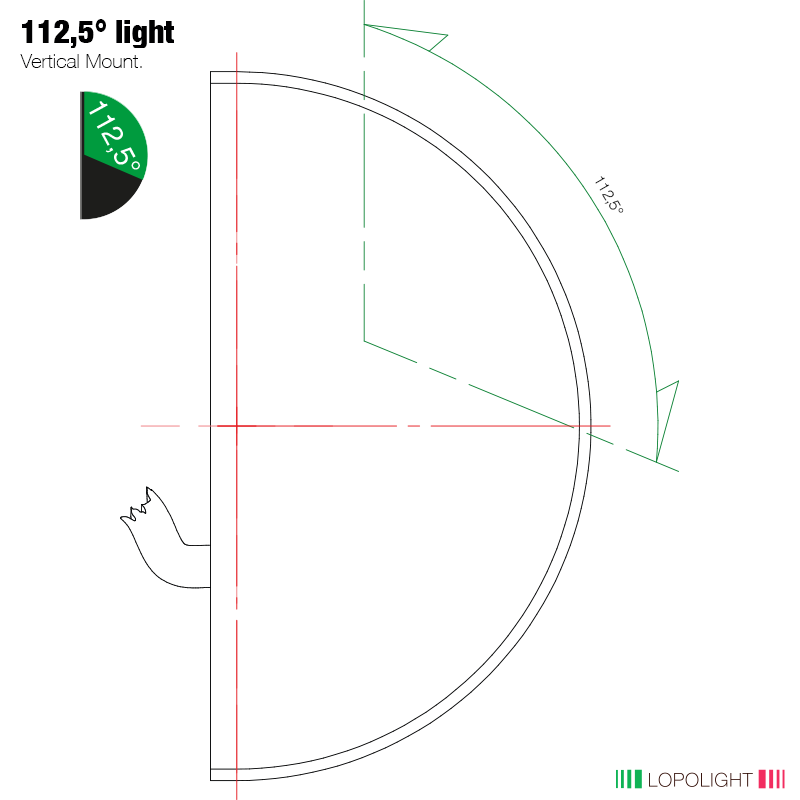

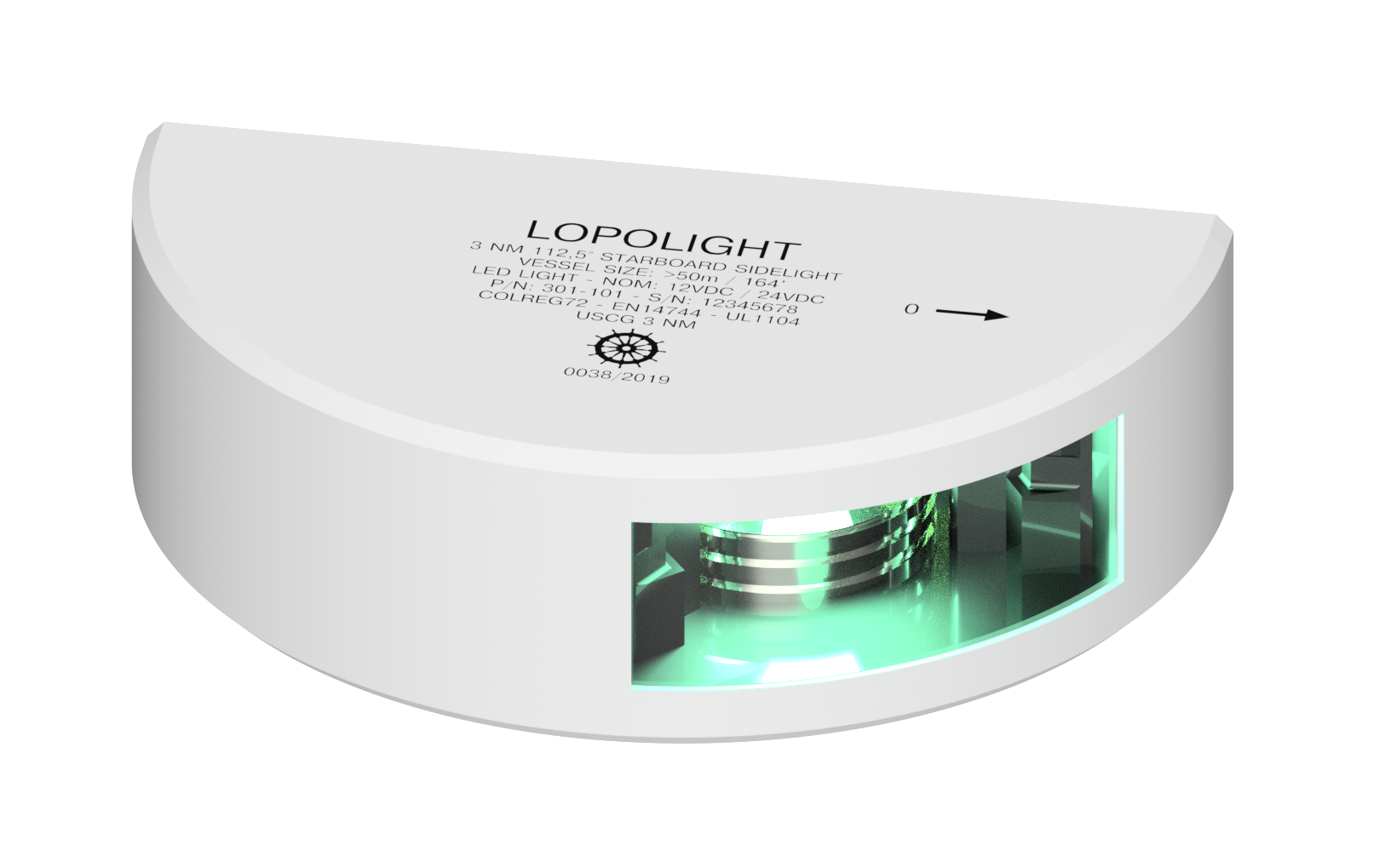

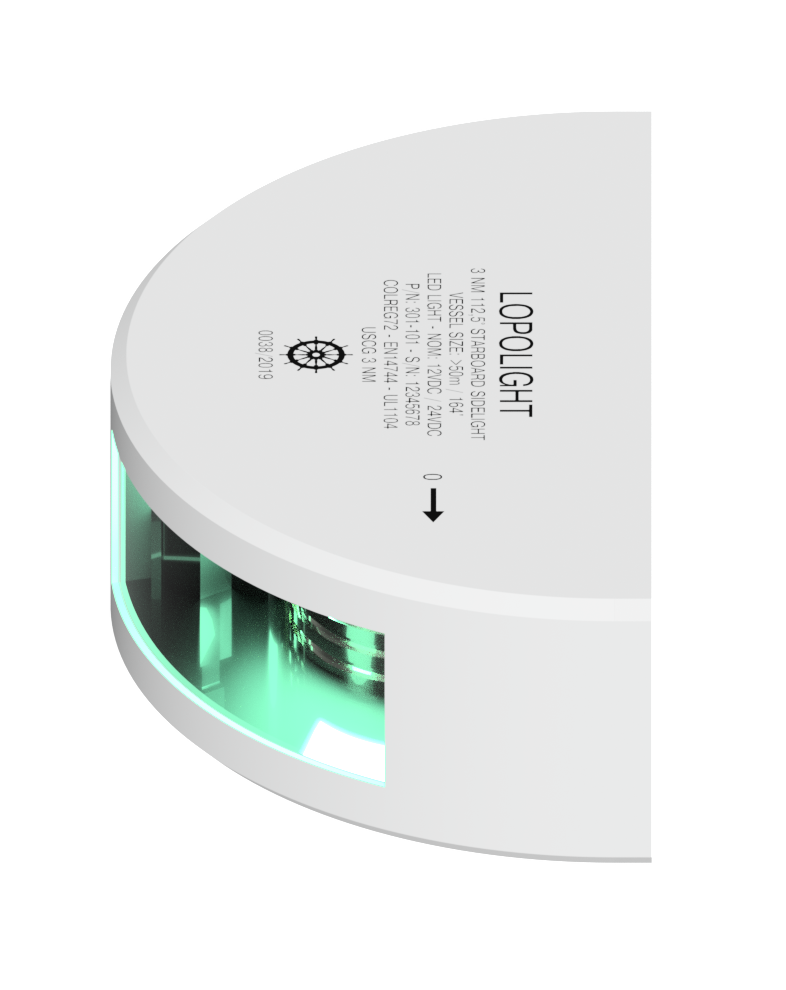

2nm 112,5° Green, Starboard, white ceramic coated
P/N: 301-001-WH
2nm Stbd, white ceramic coated
White ceramic finish Vertically mounted with 2,5m cable
Number
301-001-WH
Light Color
Green
Dimensions metric
92,5 x 28 x 49,7
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>5.4cd
Dimensions imperial
3.6" x 1.1" x 1.95"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438039254
IP rating
IP68
Power draw (W)
2
UPC Code
879343039387
Connection
2.5m cable
Current consumption (mA @ 12VDC)
110
Current consumption (mA @ 24VDC)
60
Vessel size
12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.31 Kg
Weight (Oz)
10.93 Oz
