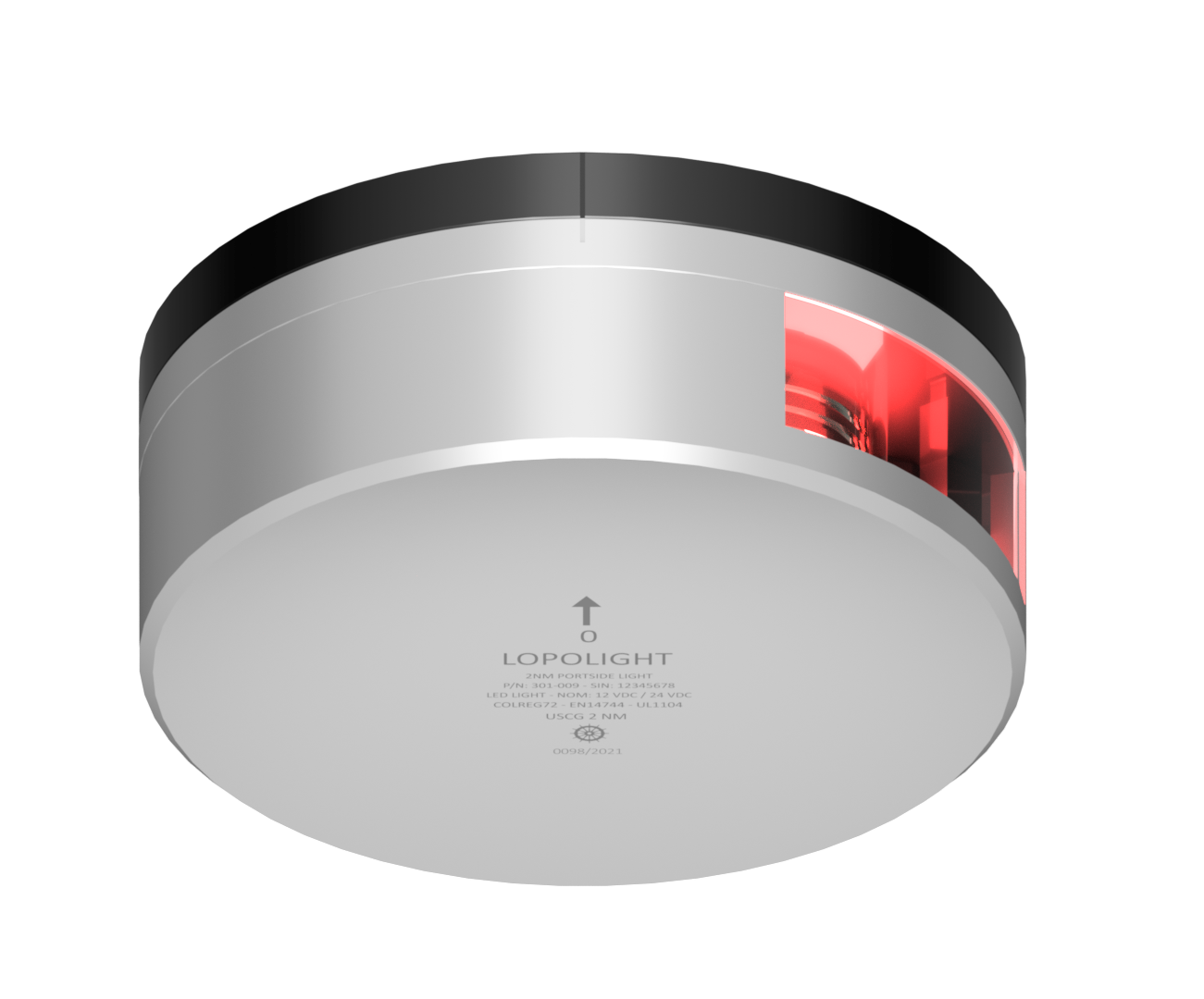

2nm 112,5° Red, port, sgl, upside/down w/FB base
P/N: 301-009-FB REVERSE
2nm port, single, upside/down w/FB base
Horizontally mounted with 2,5m cable FB (flat base) POM mounting system
Number
301-009-FB REVERSE
Light Color
Red
Dimensions metric
Ø92,5mm x 36mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 1.4"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438043732
IP rating
IP68
Power draw (W)
1,2
UPC Code
879343043865
Connection
2.5m cable
Current consumption (mA @ 12VDC)
90
Current consumption (mA @ 24VDC)
50
Vessel size
Under 12M,12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.57 Kg
Weight (Oz)
19.93 Oz
