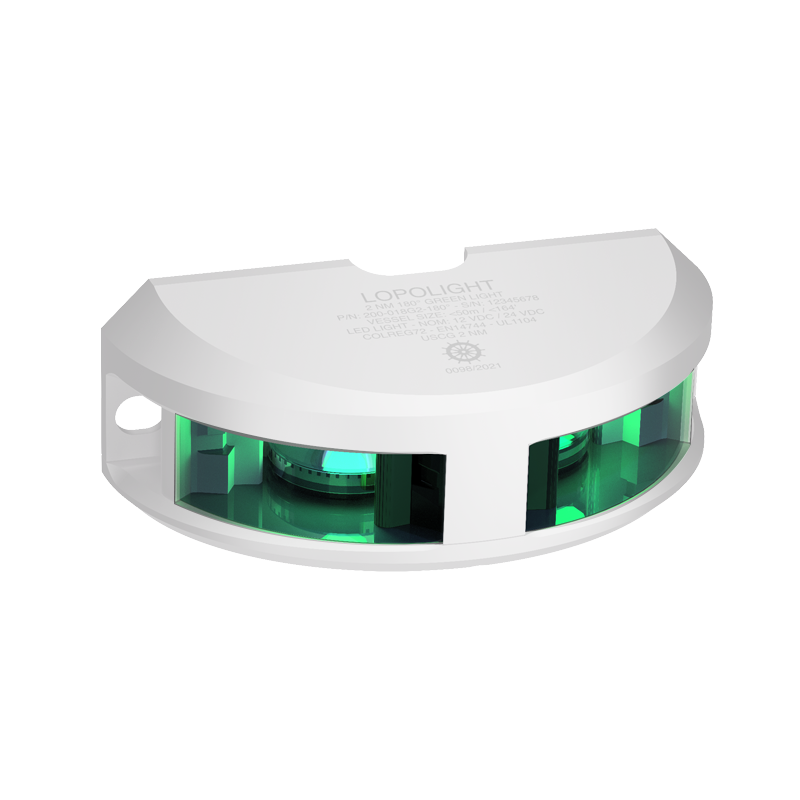

2nm 180° Green, white ceramic coated
P/N: 200-018G2-WH
2nm 180° Green, white ceramic coated
Vertical mounted with 0.75m cable
Number
200-018G2-WH
Light Color
Green
Dimensions metric
104 mm x 37 mm x 45 mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
4.0" x 1.4" x 1.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438048997
IP rating
IP68
Power draw (W)
1,5
UPC Code
879343049126
Connection
0.7m cable
Current consumption (mA @ 12VDC)
213
Current consumption (mA @ 24VDC)
115
Vessel size
12-20M,20-50M
Weight (Kg)
0.35 Kg
Weight (Oz)
12.34 Oz
