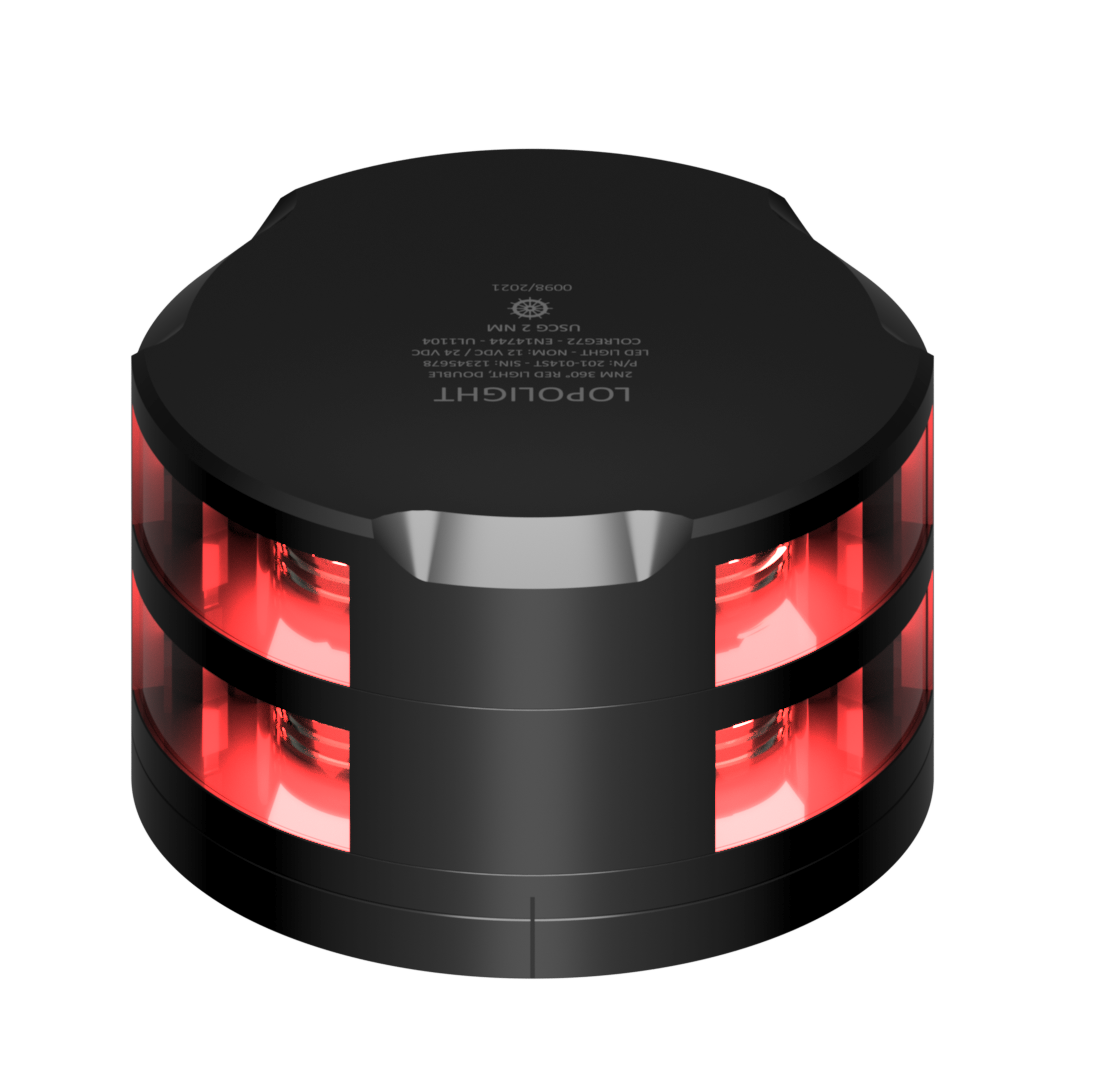

2nm 360° Red, Double, black w/FB base
P/N: 201-014ST-FB-B
2nm 360° Red, Double, black w/FB base
Horizontally mounted with 0,7m cables FB (flat base) POM mounting system
ST-FB-B.png "2nm 360° Red, Double, black w/FB base")
Number
201-014ST-FB-B
Light Color
Red
Dimensions metric
Ø92,5mm x 58mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 2.3"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438043107
IP rating
IP68
Power draw (W)
2,1
UPC Code
879343043230
Connection
0.7m cable
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
85
Vessel size
Under 12M,12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.74 Kg
Weight (Oz)
25.99 Oz
