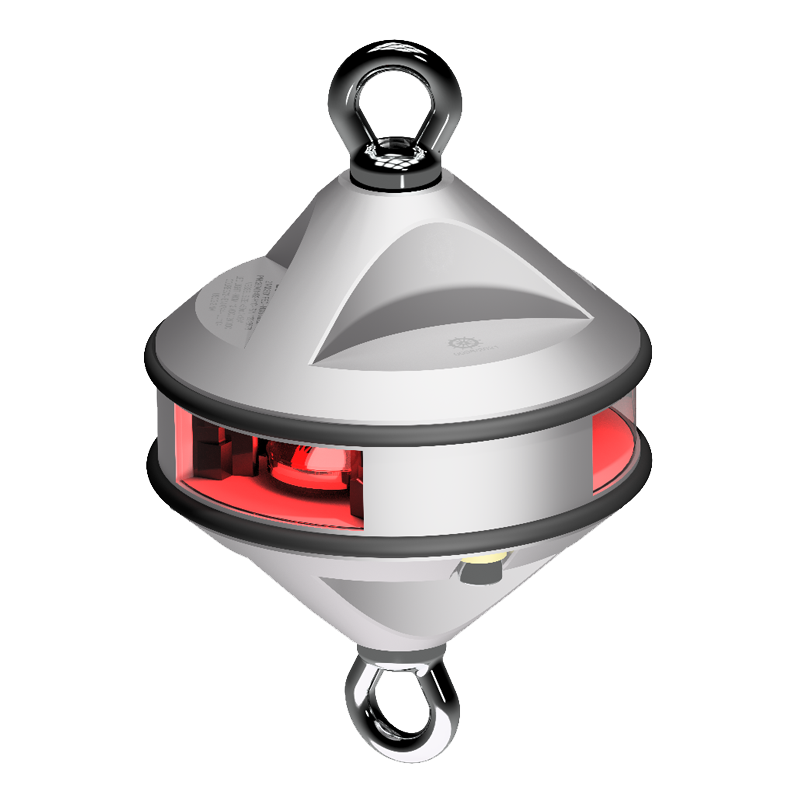

2nm 360° Red, hoist, silver anodized

P/N: 200-014G2-H1C

2nm 360° Red, hoist, silver anodized

1 connector
Number
200-014G2-H1C
Light Color
Red
Dimensions metric

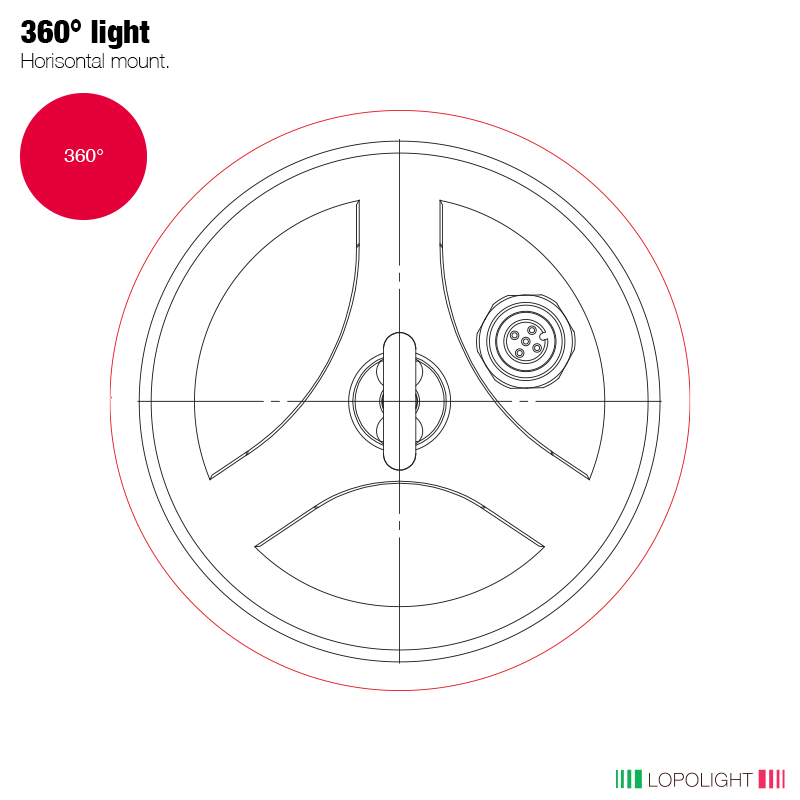

See drawing
Certification

This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Intensity
>5.4cd
Dimensions imperial
See drawing
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Operating temperature
-25°C to 55°C
Mounting
Hoistable
Materials

Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

Operating Voltage
10-32VDC
EAN
5704438022638
IP rating
IP68
UPC Code
879343022761
Connection
M12 connector
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
85
Vessel size
Under 12M,12-20M,20-50M
Weight (Kg)
0.81 Kg
Weight (Oz)
28.57 Oz
