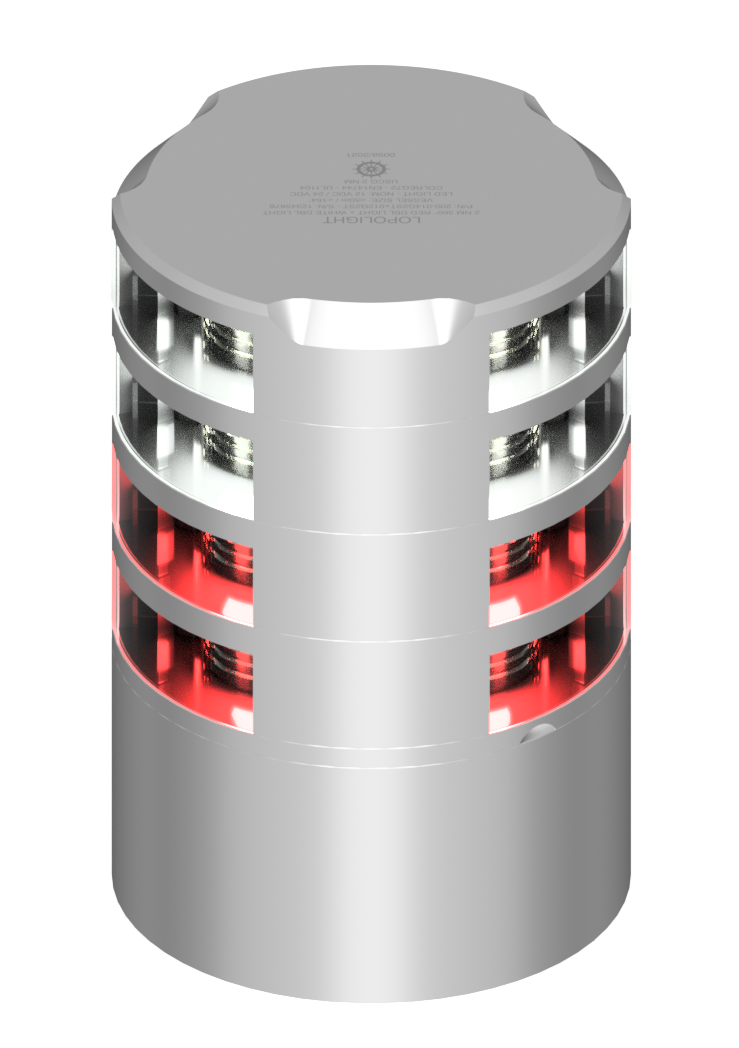

2nm 360° Red w/strobe, Double + 360° White, Double
P/N: 200-014G2SST+012G2ST
360° double red w/strobe plus 360° double white
Red strobe 150ms ON - 350ms OFF Mounted on aluminium cable down base Delivered with HDPE mounting base
_360°ST(White).png "2nm 360° Red w/strobe, Double + 360° White, Double")
Number
200-014G2SST+012G2ST
Light Color
Red
Dimensions metric

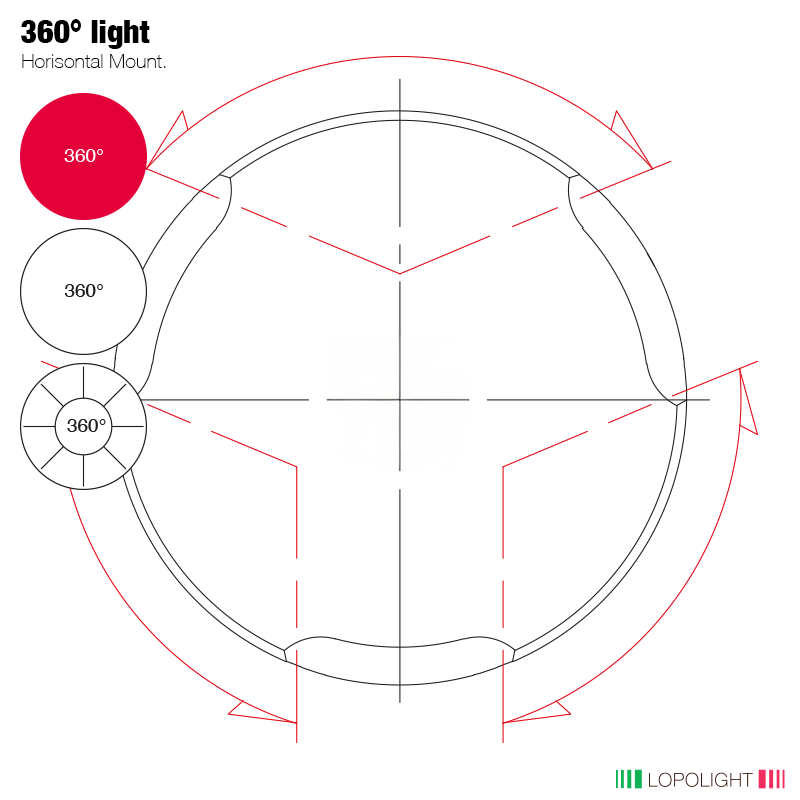

See drawing
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>5.4cd
Dimensions imperial
See drawing
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
EAN
5704438013346
IP rating
IP68
UPC Code
879343013349
Connection
Plug connector
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
85
Vessel size
Under 12M,12-20M,20-50M
Weight (Kg)
1.8 Kg
Weight (Oz)
63.49 Oz
