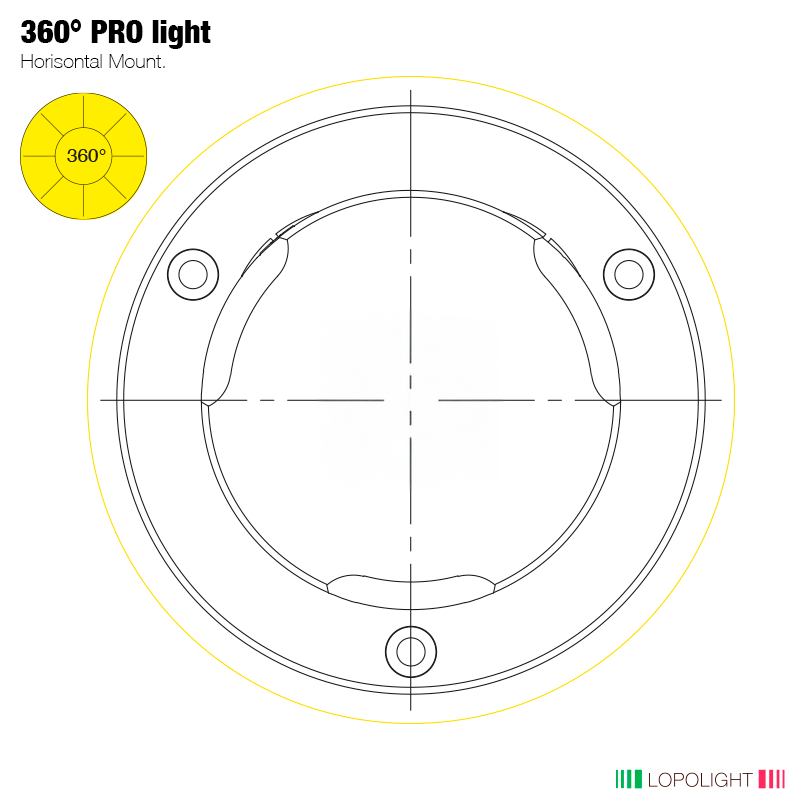

2nm 360° Yellow/Strobe, black anodized
P/N: 201-023S-PRO
2nm 360° Yellow solid/flashing, black anodized
Horizontally mounted on POM base (IP68) Cable direction side incl.HDPE base plate Quality cable glands
Number
201-023S-PRO
Light Color
Yellow
Dimensions metric
Ø92,5mm x 36mm
Certification
This product is tested to IEC 60945
Dimensions imperial
Ø3.6" x 1.4"
Approved to
IEC 60945
Visibility
2nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438039858
IP rating
IP68
Power draw (W)
3,6
UPC Code
879343039981
Connection
Plug connector
Current consumption (mA @ 12VDC)
170
Current consumption (mA @ 24VDC)
105
Vessel size
All Sizes
Weight (Kg)
0.82 Kg
Weight (Oz)
28.92 Oz
