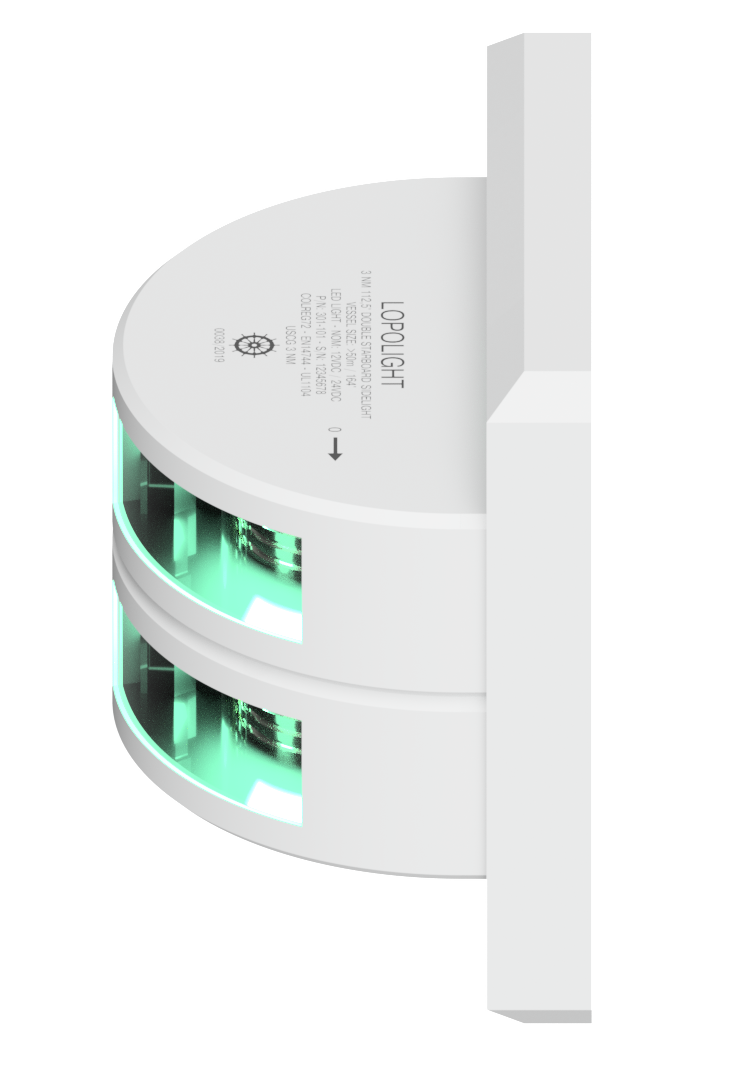

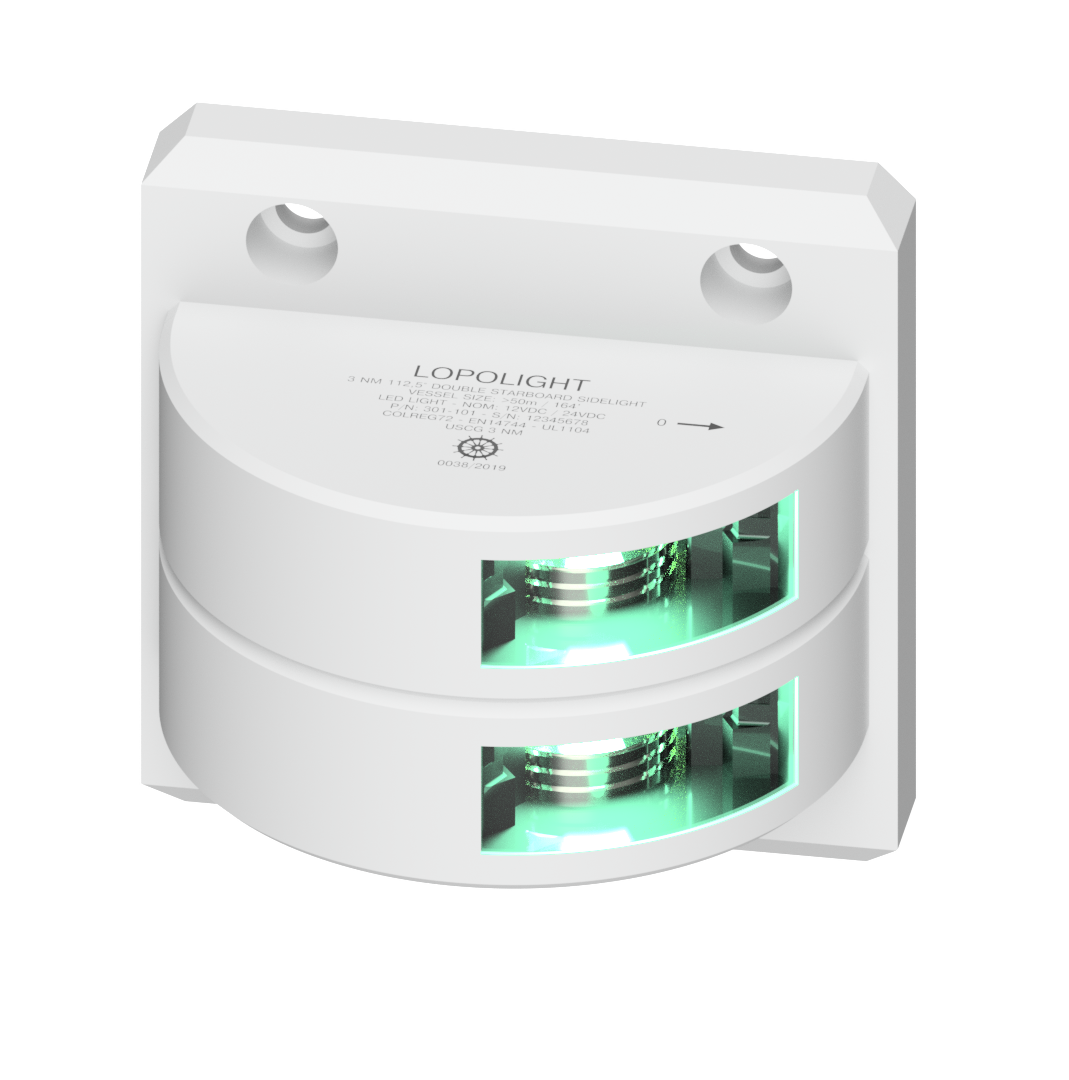

3nm 112,5° Green, Starboard, dbl, white coated
P/N: 301-101ST-WH
3nm Stbd, Double, white ceramic coated
with 2.5 meter cables
Number
301-101ST-WH
Light Color
Green
Dimensions metric
100 x 100 x 49,7
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>15cd
Dimensions imperial
3.9" x 3.9" x 1.95"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438039438
IP rating
IP68
Power draw (W)
3
UPC Code
879343039561
Connection
2.5m cable
Current consumption (mA @ 12VDC)
180
Current consumption (mA @ 24VDC)
100
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.02 Kg
Weight (Oz)
35.98 Oz
