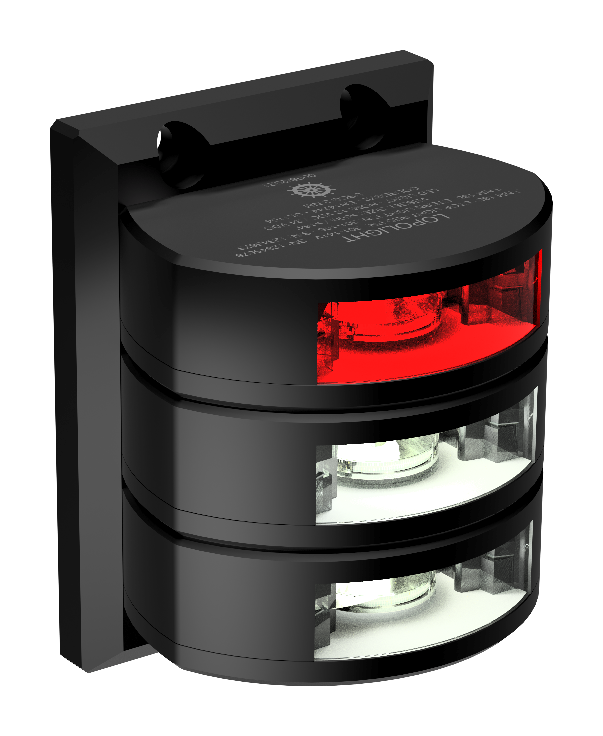

3nm 135° Red Stop + 3nm dbl Stern, vert mount, blk
P/N: 301-141V+301-106ST-B
3nm 135° Red Stop + 3nm dbl Stern, vert mount, blk
Mounted on back plate 3 x 2,5mter cable
Number
301-141V+301-106ST-B
Light Color
Red,White
Dimensions metric
113 x 72 x 86
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>15cd
Dimensions imperial
4,4" x 2,8" x 3,3"
Approved to
IEC 60945
Visibility
3nm
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438013728
IP rating
IP68
Power draw (W)
2,5
UPC Code
879343013721
Connection
0.7m cable
Current consumption (mA @ 12VDC)
180
Stock status
Made to order
Current consumption (mA @ 24VDC)
60
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.35 Kg
Weight (Oz)
47.61 Oz
