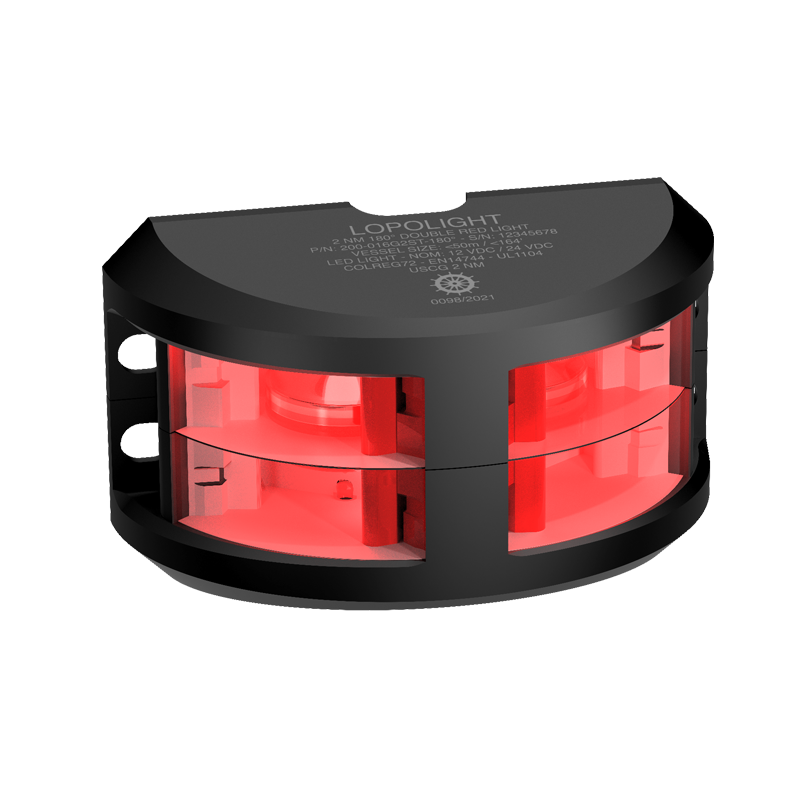

3nm 180° Red, double, black anodized
P/N: 300-116G2ST-B 6M
3nm 180° Red, double, black anodized
Vertical mounted with 6m cables
Number
300-116G2ST-B 6M
Light Color
Red
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Operating temperature
-25°C to 55°C

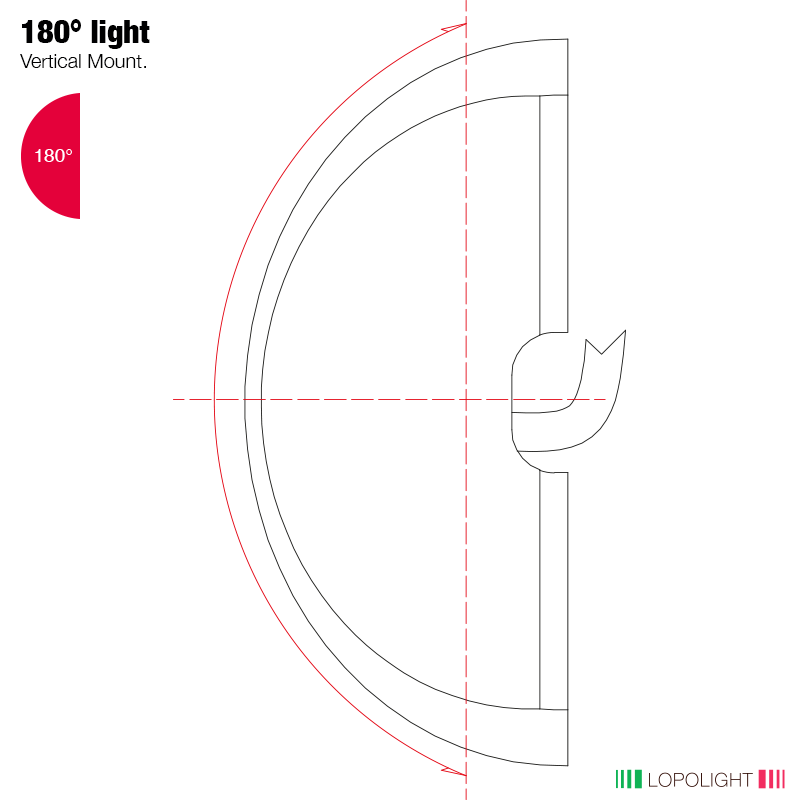

Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438021716
IP rating
IP68
UPC Code
879343021849
Connection
0.7m cable
Current consumption (mA @ 12VDC)
210
Current consumption (mA @ 24VDC)
92
Vessel size
Over 50M
Weight (Kg)
1.01 Kg
Weight (Oz)
35.62 Oz
