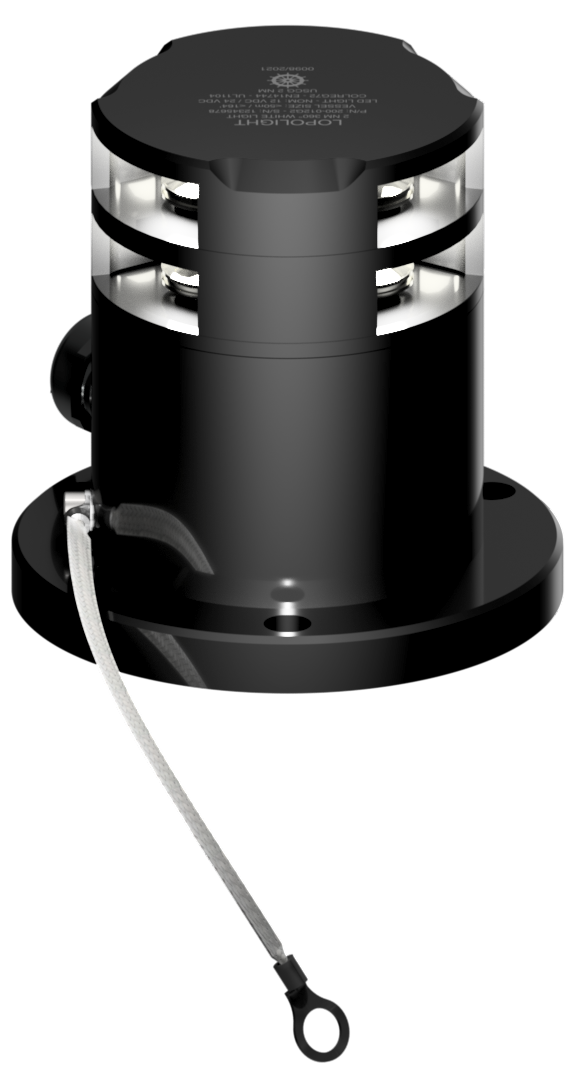

3nm 360° White, Double, Ex Zone 1&2, ice-class
P/N: 301-112ST-PRO-I-EX
3nm 360° White, Double, Ex Zone 1&2, ice-class
Certified for use in ATEX Zone 1 & 2 Built-in De-icing function Horizontally mounted on 400-037 EX/MIL alu base Cable direction side, incl. HDPE base plate. No Cable glands or Ground strap included.
-EX-RPM.png "3nm 360° White, Double, Ex Zone 1&2, ice-class")
Number
301-112ST-PRO-I-EX
Light Color
White
Dimensions metric
Ø92,5mm x 125,5mm
Certification
This Navigation Light is certified by DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb) and ExVeritas (PQAN/UKQAN/QAR), the Declaration of conformity and the certificates can be found on https://lopolight.com/support
Intensity
>15cd
Dimensions imperial
Ø3.6" x 4.9"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,BV,RINA,LR,MCA,ATEX 2014/34/EU,IEC 60079-0/7/18,UK Ex
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438040755
IP rating
IP68
Power draw (W)
4
UPC Code
879343040888
Connection
Plug connector
Current consumption (mA @ 12VDC)
260
Special Attributes
Ice-class Defroster included,IEC Ex Zone 1 certified,ATEX Zone 1 certified
Current consumption (mA @ 24VDC)
176
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.53 Kg
Weight (Oz)
53.96 Oz
