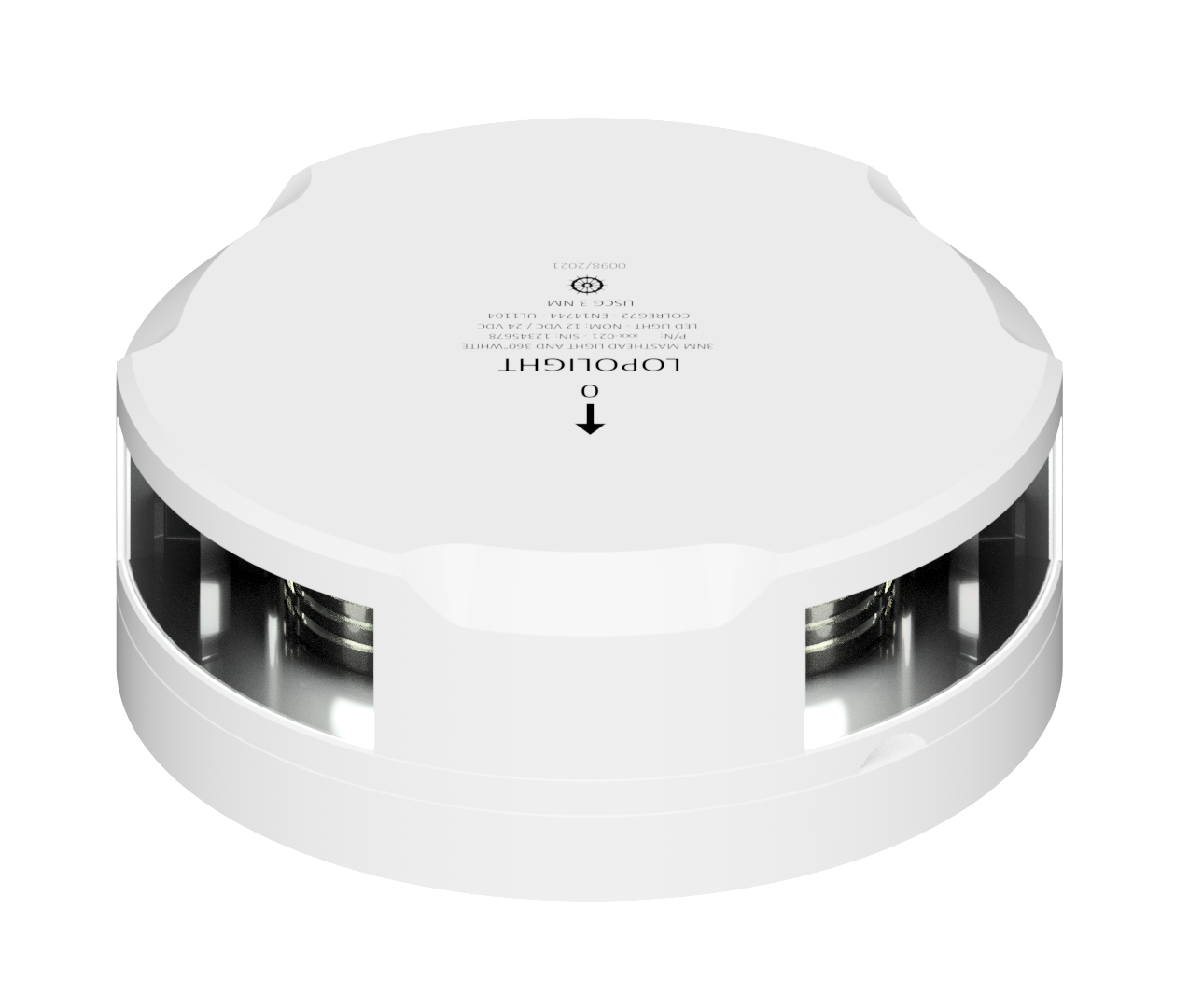

3nm Masthead/360° White, white ceramic coated
P/N: 201-021-WH-UL
3nm Masthead/360° White, white ceramic coated
This light is specific for Power Boats White ceramic finish Aluminium ultra low mounting ring, white
Number
201-021-WH-UL
Light Color
White
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438041431
IP rating
IP68
Power draw (W)
3,6
UPC Code
879343041564
Connection
0.7m cable
Current consumption (mA @ 12VDC)
300
Current consumption (mA @ 24VDC)
148
Vessel size
12-20M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
