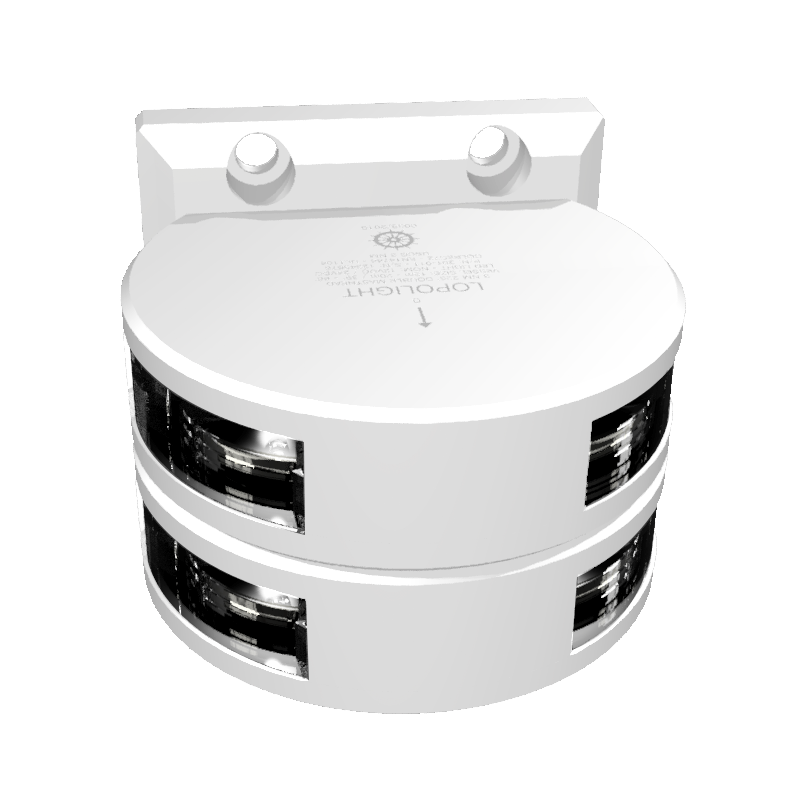

5nm 225° White, Double Masthead, vert mnt, white
P/N: 301-011ST-WH
5nm Double Masthead, white ceramic coated
Vertically mounted with 2 x 0,7m cable
Number
301-011ST-WH
Light Color
White
Dimensions metric
92,5 x 88,6 x 85
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>52cd
Dimensions imperial
3.6 x 3.4 x 3.3
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
5nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041400
IP rating
IP68
UPC Code
879343041533
Connection
0.7m cable
Current consumption (mA @ 12VDC)
320
Current consumption (mA @ 24VDC)
170
Vessel size
20-50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
