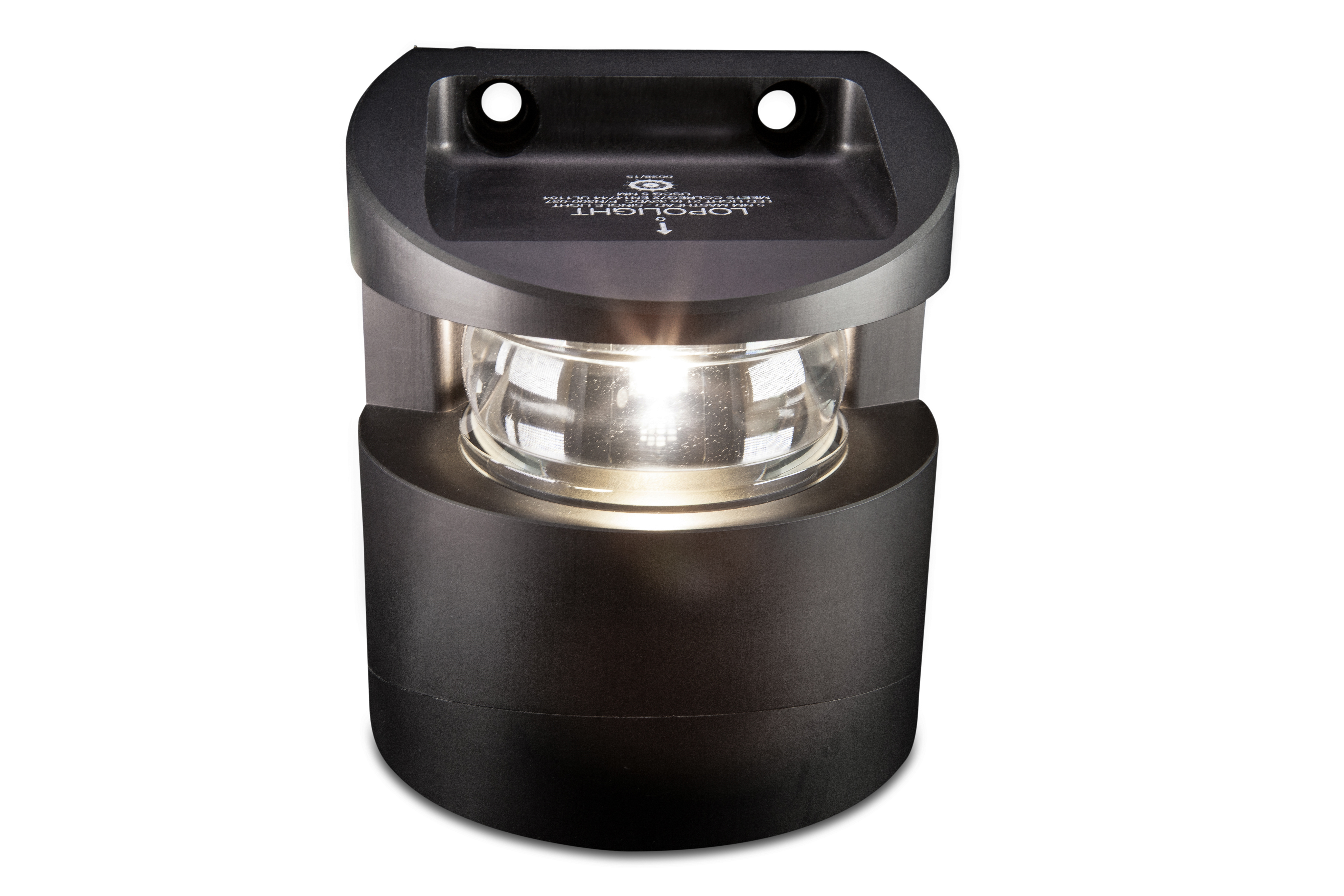

6nm 225° White, Masthead, black anodized
P/N: 300-137-PRO 2.5M
6nm Masthead, black anodized
Cable direction side, 2.5m cable
Number
300-137-PRO 2.5M
Dimensions metric
107 x 92,5 x 74
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
4.2" x 3.6" x 2.9"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438004856
IP rating
IP68
Power draw (W)
13
UPC Code
879343004859
Connection
0.7m cable
Current consumption (mA @ 12VDC)
23
Current consumption (mA @ 24VDC)
580
Weight (Kg)
1.06 Kg
Weight (Oz)
37.39 Oz
