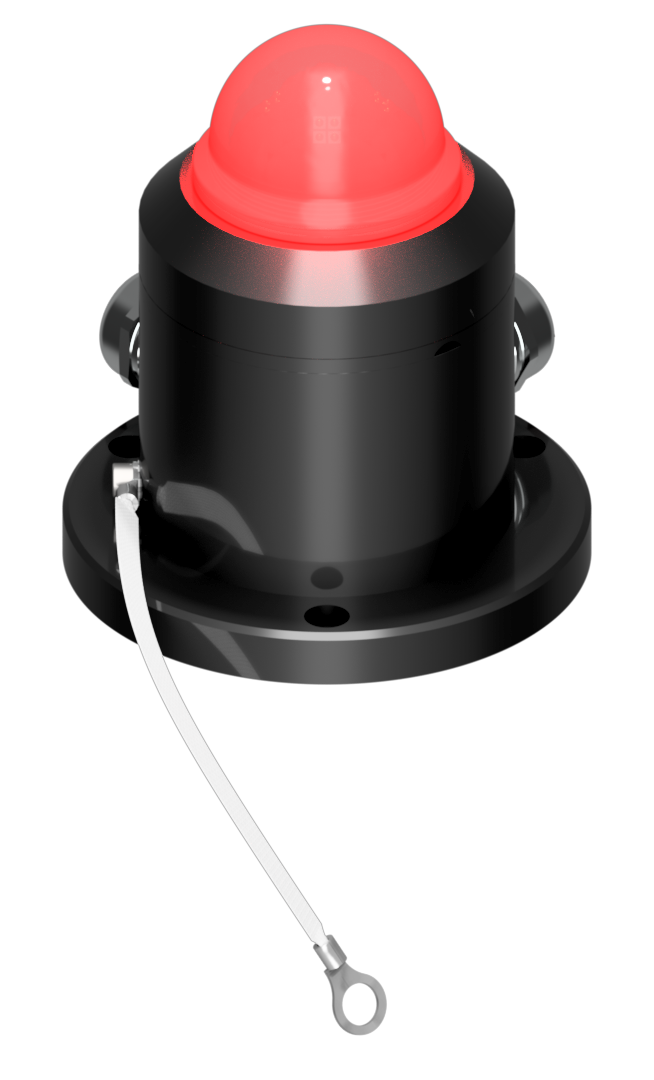

Obstruction light, red, hemispherical, double
P/N: 301-411ST-B-RPM-I
Obstruction light, red, hemispherical, double
Dimmable / monitored / controllable 2-lead connection for power and control Ice-class heaters built-in 24VDC
Number
301-411ST-B-RPM-I
Light Color
Red
Dimensions metric
Ø92,5mm x 145,5mm
Certification
Tested to IEC 60945
Intensity
>15cd
Dimensions imperial
Ø3,6" x 5,7"
Approved to
IEC 60945
Visibility
3nm
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438013773
IP rating
IP68
Power draw (W)
2,7
UPC Code
879343013776
Connection
Plug connector
Current consumption (mA @ 12VDC)
222
Special Attributes
Ice-class Defroster included,Dimmable (NAVY/SAR only)
Stock status
Made to order
Current consumption (mA @ 24VDC)
111
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.5 Kg
Weight (Oz)
52.90 Oz
