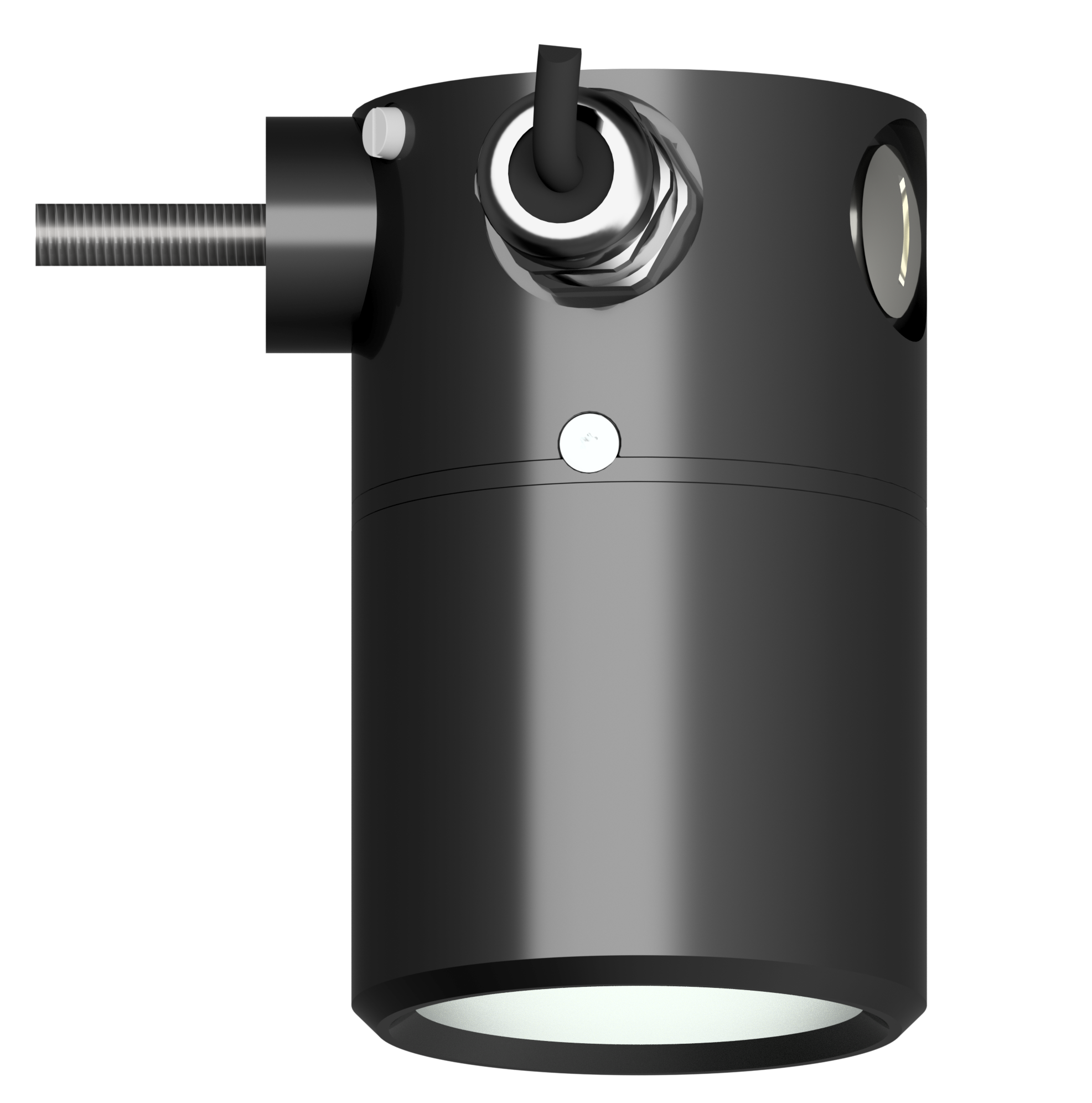

Wake light, White, Dimmable, Ice-class
P/N: 301-413-B-RPM-I
Wake light, White, Dimmable, Ice-class
Dimmable / monitored / controllable Built-in ice-class defroster 2-lead connection for power and control
Number
301-413-B-RPM-I
Light Color
White
Dimensions metric
See drawings
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
See drawings
Approved to
IEC 60945
Visibility
3nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-40°C to 55°C
Mounting
Vertical
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438041530
IP rating
IP68
UPC Code
879343041663
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Special Attributes
Ice-class Defroster included,Dimmable (NAVY/SAR only)
Current consumption (mA @ 24VDC)
220
Vessel size
20-50M,Over 50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
